| 表示サイズ: | 12.1インチ | 表示タイプ: | LCD |
|---|---|---|---|
| 材料: | ABSプラスチック | 正確さ: | 99％ |
| 重さ: | 5kg | ECGリードモード: | 3リードと5つのリード |
| 心拍数の範囲: | 1-255 bpm | RESP範囲: | 0-60 bpm |
| NIBPの範囲: | 60-250 mmHg（収縮期） | SpO2範囲: | 0-100％ |
| Spo2正確さ: | 1％ | 温度範囲: | 20°C-45°C |
| 温度精度: | ±0.1°C | 電池のタイプ: | 鉛酸（14.8V 2600mAh） |
| 電源: | 220V 50Hz | ||

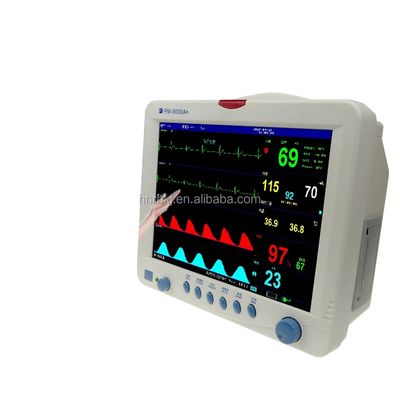

| ハイライト: | 99% Accuracy Multi Parameter Patient Monitor,1 Year Warranty Vital Signs Monitor,Class II Portable Patient Monitor |
||
| Standard Configuration | 12.1 inch LED, 3/5 lead ECG, TEMP, SPO2, NIBP, RESP, HR |
|---|---|

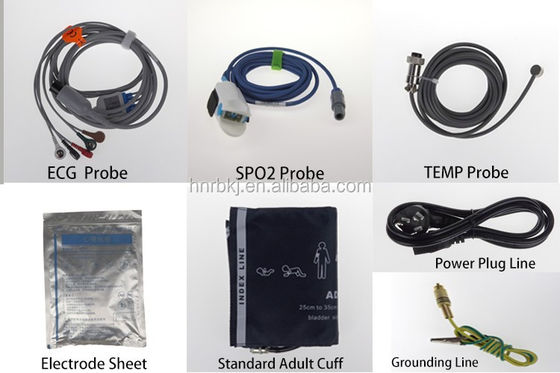

| Optional Accessories | Printer, battery, neo/ped accessories, trolley, wall bracket |
| Weight | 5kg (with package) |
| Package | Carton |
| Operation Way | Jog shuttle |
| SFDA Classification | Class Ⅱ |
| Working Environment | ICU, CCU, operation room, hospital bedside care ward |
| ECG |
Lead Mode: 3-lead and 5-lead optional Gain: ×1, ×2, ×0.5, and ×0.25 Standard: ANSI/AMI EC13-2002 compliant Heart rate range: 1-255 bpm adjustable Alarm threshold: 0-254 bpm adjustable |
|---|---|
| RESP |
Frequency range: 0-60 bpm Accuracy: ±1rpm Alarm range: 10-100 bpm adjustable |
| NIBP |
Technology: Oscillometric Mode: Manual/automatic Measurement time: <45 seconds Measuring range: 60-250 mmHg (systolic), 40-220 mmHg (diastolic) |
| SpO2 |
Range: 0-100% Accuracy: 1% Pulse frequency: 20-250 times/min Response time: 1s |
| TEMP |
Measuring range: 20°C-45°C Resolution: 0.1°C Accuracy: ±0.1°C |
| Printer (Optional) |
Dual channel thermal array data recorder Print mode: Real time or event triggered Resolution: 400dpi/800dpi Annotation: Time (24h format) |
| System |
Screen: 12.1 inches TFT LCD Battery: Lead acid (14.8V 2600mAh) Safety standard: IEC601-1 (GB9706.1) Power: 220V 50Hz Operation: Jog shuttle |
